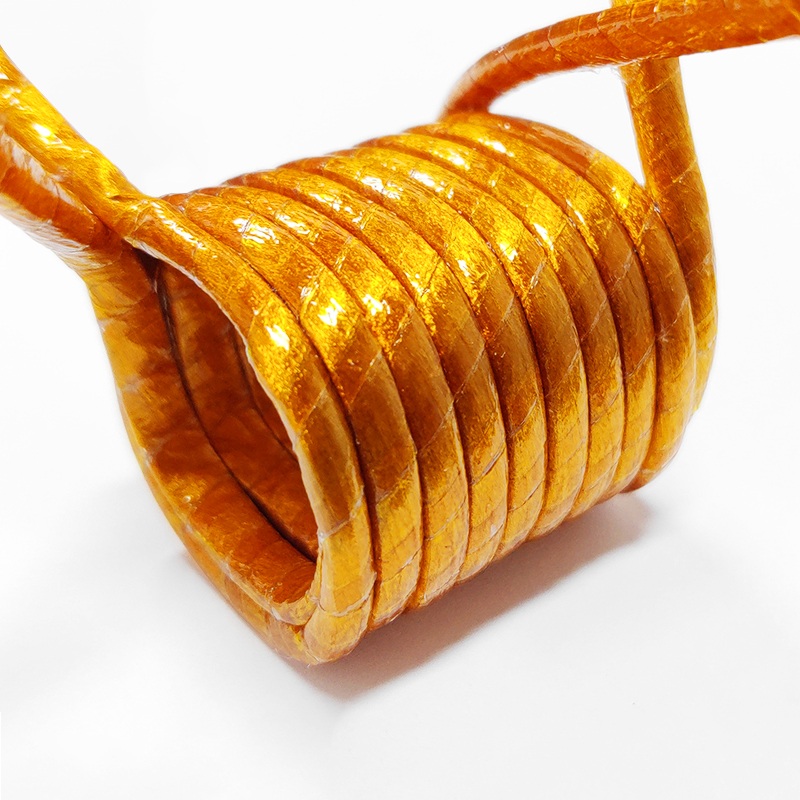

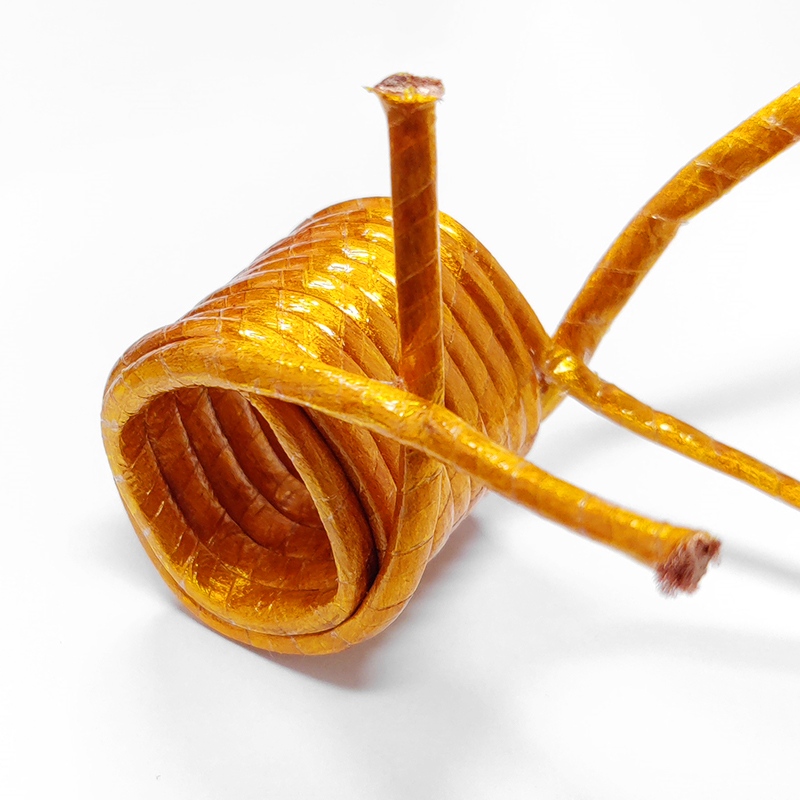

Ikhoyili ye-Litz Wire

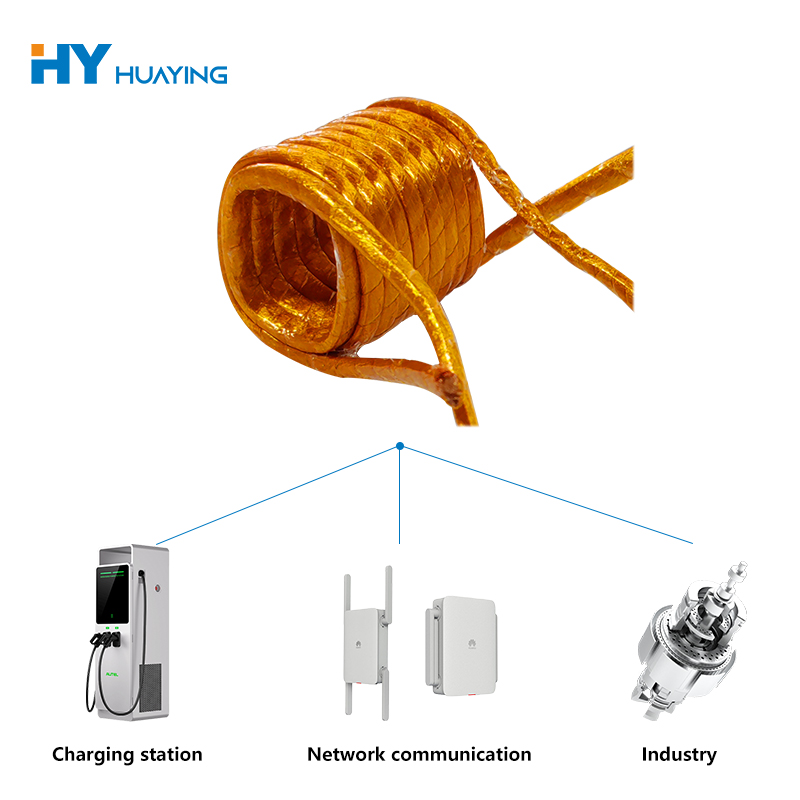

I-Huaying Litz Wire Coil iwumkhiqizo okhethekile wezinhlelo zokusebenza zemvamisa ephezulu okhiqizwa yi-Huizhou Huaying Electronic Technology Co., Ltd. Amandla enkampani afakazelwa emakethe. Le nkampani futhi isebenzisana ne-Shenzhen Research Institute yase-Huazhong University of Science and Technology ku-R&D. Ngaphambilini, lapho kunikezwa izinkampani ezinkulu ezifana ne-Xiaomi ne-Huawei, bahlela amakhoyili afanayo ngendlela oyifisayo ezingxenyeni zabo ze-elekthronikhi ezinemvamisa ephezulu, bathole idumela eliqinile. Ngaphezu kwalokho, inkampani ine-ISO 9001 kanye ne-IATF 16949 eqinisekisiwe, iqinisekisa izilawuli eziqinile zokukhiqiza. Kusukela ekuklanyweni kuya ekudilivweni, zonke izinyathelo zale Litz Wire Coil zinamathela ezimisweni, ziqinisekisa ukuthi unokuthula kwengqondo lapho uyikhetha.
Ukulawulwa Okuqinile Kokuphenduka Kokubala Komkhiqizo Ukunemba
Lapho ukhiqiza amakhoyili e-Huaying Litz Wire, ukunemba kokubala kubalulekile. Ngisho nephutha elincane enanini lokujika lingachezuka kumapharamitha we-electromagnetic we-transformer futhi lidale izinkinga kalula phakathi nokufakwa okushumekiwe. Lokhu kuyiqiniso ikakhulukazi uma amakhoyili asonga ngokujika okuningi, lapho ngisho nokunganaki okuncane kungaholela emaphutheni. Sekuyisikhathi eside sikucabanga lokhu futhi sathuthukisa amazinga okukhiqiza we-7S eshabhu yethu ngobuchwepheshe obukhaliphile. Manje sisebenzisa imishini yokusonta ezenzakalelayo ngokuphelele. Umshini ngamunye unesistimu yokubala enembayo eqapha inani lokujika ngesikhathi sangempela phakathi nokujikajika, igcina iphutha phakathi nokujika okungu-±1. Lokhu kuthembeke kakhulu kunemishini yokusonta ngezandla noma eyejwayelekile.
Ukwenza Ngokwezifiso Umumo Womkhiqizo Onembile
Ukuma kwekhoyili ye-transformer kufanele kuhlangabezane ngokuphelele nezimfuneko zamakhasimende, ngaphandle kwalokho kuzothinta ukucubungula nokuhlanganisa okulandelayo. Lokhu kuyiqiniso ikakhulukazi kumakhoyili avamile abonakala "amakhoyili angama-elliptical" kanye "namakhoyili angama-rectangular chamfered" emakethe. Nakuba zingabukeka zifana nonxande ovamile, zidinga ukunemba okuphezulu kobukhulu, okuzenza zithambekele ekukhiqizeni okungajwayelekile ngabakhiqizi abaningi. Sitshala umzamo omkhulu ekulawuleni ukuma futhi sineshabhu yokubumba ezinikele. Kungakhathalekile ukuthi ikhasimende lifuna ukwakheka kwekhoyili ye-Huaying Litz Wire, singenza ngendlela oyifisayo ukubunjwa okusekelwe emidwebeni enemininingwane enobukhulu. Noma sinomumo oyinkimbinkimbi, siqinisekisa ukubekezelelana kobukhulu ngaphakathi kuka-0.05mm, sihlangabezana ngokugcwele nezidingo zokucubungula ezilandelayo.
Ukusebenza Komkhiqizo Okubalulekile Kuhlangabezana Namazinga
Ikhoyili "inhliziyo" ye-transformer. Ukuqinisekisa ukusebenza okude, okuphephile, amandla kagesi, amandla okushisa, namandla emishini kubalulekile. Ikhoyili yethu ye-Huaying Litz Wire ifake umzamo omkhulu kulezi zici. Maqondana namandla kagesi, ungqimba olufakwa ngaphakathi lusebenzisa impahla yokuvikela ekwazi ukumelana nokushisa okuphezulu yenkampani yethu. Ihlolwe ukuze imelane ngokuthembekile nama-voltage ayinkimbinkimbi afana nokunyuka kombani kanye nama-switch surges ngaphandle kokuphuka kwe-dielectric. Mayelana namandla okushisa, ikhoyili ingakwazi ukumelana nokushisa okukhiqizwa amandla amanje ngisho nangesikhathi sokusebenza komthwalo ogcwele isikhathi eside. Impilo yesevisi yesendlalelo sokuvala ifana nempilo yonke ye-transformer, iyivikele emonakalweni wokushisa uma kwenzeka kuba nesekethe emfushane.
Ukucaciswa kwethebula kuyingxenye yemininingwane yomkhiqizo engenziwa ngezifiso ngokuya ngezidingo zamakhasimende
| I-diameter ye-conductor × Inani lamasheya |
Umqhubi wethusi oyedwa Ibanga lokubekezelela ivolumu nxazonke (mm) |
I-stranded ngaphandle ububanzi ±0.1mm |
I-diameter yangaphandle eqediwe(mm) | Ukupakisha ubude (M/eksisi) |
Umqhubi Ukumelana (20℃) (Ω/km) |
|
| Ubukhulu(mm) (MAX) |
Ububanzi (mm) (MAX) |
|||||
| 0.06×2000 | ±0.003 | 3.88 | 2.4 | 4.5 | 500 | 3.611 |
| 0.06×2000 | ±0.003 | 4.07 | 2.7 | 4.2 | 500 | 3.283 |
| 0.07×1200 | ±0.003 | 3.4 | 2.0 | 4.5 | 500 | 4.422 |
| 0.07×2000 | ±0.003 | 4.4 | 2.4 | 5.8 | 500 | 2.653 |
| 0.07×2200 | ±0.003 | 4.61 | 2.7 | 5.5 | 500 | 2.412 |
| 0.10×200 | ±0.003 | 1.72 | 2.2 | 1.5 | 800 | 13.001 |
| 0.10×400 | ±0.003 | 2.66 | 1.7 | 3.1 | 300 | 6.5 |
