I-Solderable Triple Insulated Wire

I-Huizhou Huaying Electronic Technology Co., Ltd. ingumkhiqizi kanye nomphakeli we-Huaying Solderable Triple Insulated Wire. Kusukela ekuqaleni okuthobekile kuya esikhundleni esihamba phambili embonini, i-Huaying Electronics ithembele ekuzinikezeleni kwayo okungaguquki ocwaningweni, ekuthuthukisweni nasekukhiqizweni kwezintambo ezivalekile. Ngokuqhubeka okuqhubekayo, sebengumdlali othembekile embonini, behlinzeka ngemikhiqizo yekhwalithi ephezulu kanye nenkonzo yokunaka ezinkampanini eziningi. Ngakho-ke, sikhethe futhi uzizwe uqiniseka.

Thumela Uphenyo

Incazelo Yomkhiqizo

Ukukhethwa Kwemikhiqizo Ehlukahlukene

I-Huaying Solderable Triple Insulated Wire inikezela ngokukhethwa okuphelele kwamamodeli, okuhlanganisa izintambo ezigqunywe ngongqimba ezintathu zomucu owodwa kanye nezintambo ezintathu ezinemicu eminingi. Ngaphandle kwesicelo sakho noma izidingo ezithile, singahlangabezana nezidingo zakho. Umbala ozenzakalelayo uphuzi, kodwa singakwazi futhi ukwenza umbala wakho ngendlela oyifisayo uma uthanda okuthile okukhethekile. Kungakhathaliseki ukuthi ukhetha ukubukeka okuhlakaniphile nokuyinkimbinkimbi noma ukuthinta komuntu ngamunye, singahlangabezana nezidingo zakho, sinikeze umkhiqizo wakho ukubukeka okuyingqayizivele nokuhlukile.

Ukusebenza Okuhle Komkhiqizo

Ukusebenza kwe-Huaying Solderable Triple Insulated Wire kuyamangaza ngempela, okuhola imboni. Amandla ayo okuvikela aphakeme kakhulu; ngisho nezingqimba ezimbili zingakwazi ukumelana ne-voltage ephephile engu-2000V AC. Ngisho nasezindaweni eziyinkimbinkimbi zikagesi, kuvimbela ngokuphumelelayo ukuvuza kanye neziyingi ezimfushane, ukuqinisekisa ukusebenza kahle kwemishini. Ngaphezu kwalokho, ukuminyana kwayo okuphezulu kwamanje kuvumela ukudluliswa kwamandla okusebenza kahle, okwenza ngcono kakhulu ukusebenza kahle kwamandla. Ukuyisebenzisela ukuguqula umoya kungase futhi kwehlise isisindo nosayizi, kube negalelo elikhulu ekwakhiweni kwemikhiqizo emincane nengasindi futhi kuthuthukise ukuncintisana kwemakethe yomkhiqizo wakho.

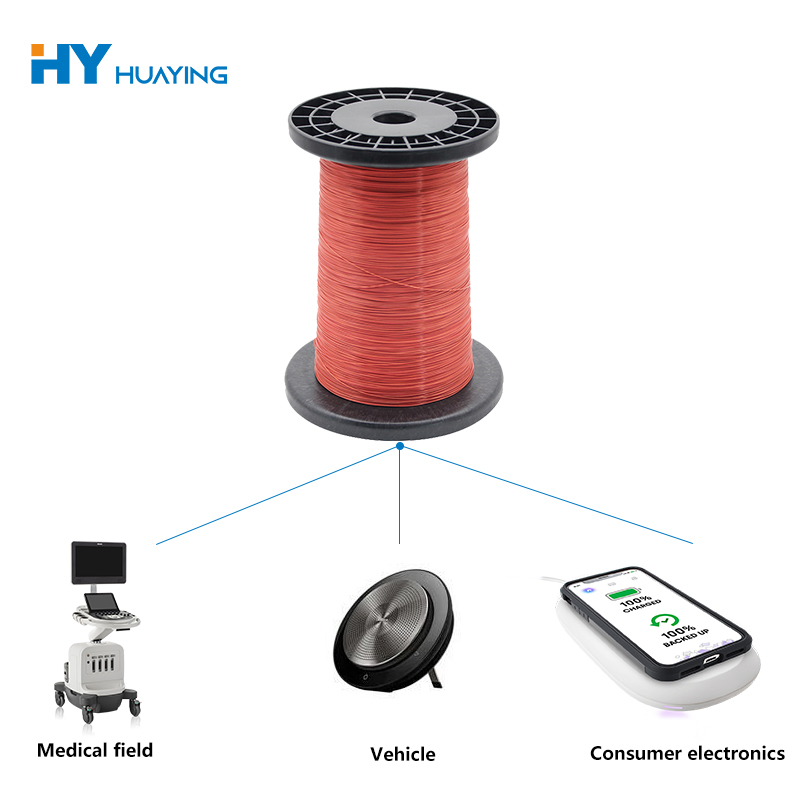

Izicelo Ezibanzi

Mayelana nobubanzi obubanzi bezinhlelo zokusebenza ze-Huaying Solderable Triple Insulated Wire, ububanzi bohlelo lokusebenza bukhulu ngempela. Ukuyihlanganisa kuma-adaptha amandla aguquguqukayo kuthuthukisa ukusebenza kahle kokudluliswa kwamandla, ukuqinisekisa ukusebenza okuzinzile kanye nokuletha amandla angaguquki emishinini ehlukahlukene kagesi. Ukuyisebenzisa emasongweni kazibuthe kuthuthukisa ukusebenza kwawo, okwenza ukuguqulwa kwe-electromagnetic kusebenze kahle. Kubaluleke kakhulu ezintweni zamandla ekhompyutha namashaja omakhalekhukhwini—ukuqinisekisa ukuphepha nokusebenza kahle kokushaja lawa madivayisi. Kungakhathaliseki ukuthi isemikhiqizweni yezimboni noma empilweni yansuku zonke, itholakala yonke indawo, inikela ngokuthula ekululameni nasekusekelweni kwezimpilo zethu nomsebenzi.

I-Solderable Triple Insulated Wire

umqhubi	inani lethagethi yobubanzi belonke	Ukumelana ne-conductor (20℃) (Ω2/km)	umqhubi	inani lethagethi yobubanzi belonke	Ukumelana ne-conductor (20℃) (Ω2/km)
0.15	0.350	1037.00	0.35	0.550	185.70
0.16	0.360	908.80	0.37	0.570	165.90
0.17	0.370	853.50	0.40	0.600	141.70
0.18	0.380	757.20	0.45	0.650	112.10
0.20	0.400	577.20	0.50	0.700	89.95
0.21	0.410	549.00	0.55	0.750	78.15
0.22	0.420	498.40	0.60	0.800	65.26
0.23	0.430	454.50	0.65	0.850	55.31
0.24	0.440	416.20	0.70	0.900	47.47
0.25	0.450	370.20	0.75	0.950	41.49
0.26	0.460	358.40	0.80	1.000	36.08
0.27	0.470	331.40	0.85	1.050	31.87
0.28	0.480	294.10	0.90	1.100	28.35
0.29	0.490	285.70	0.95	1.150	25.38
0.30	0.500	254.00	1.00	1.200	23.33
0.32	0.520	222.80

Ukucaciswa kochungechunge lwentambo eboshiwe enezendlalelo ezintathu

umqhubi	inani lethagethi yobubanzi belonke	Ukumelana ne-conductor (20℃) (Ω2/km)	umqhubi	inani lethagethi yobubanzi belonke	Ukumelana ne-conductor (20℃) (Ω2/km)
0.17x7	0.781	128.5	0.35x7	1.331	30.3
0.18x7	0.811	114.6	0.37x7	1.392	27.1
0.20x7	0.872	92.8	0.20x10	1.004	65.0
0.23x7	0.964	70.2	0.20x15	1.184	43.3
0.23x15	1.318	32.8	0.20x25	1.471	32.5
0.25x7	1.025	27.7	0.21x7	0.903	254.00
0.25x19	1.559	21.9	0.22x7	0.933	26.0
0.27x7	1.086	51.0	0.25×2	0.700	84.2
0.30x7	1.178	41.3
